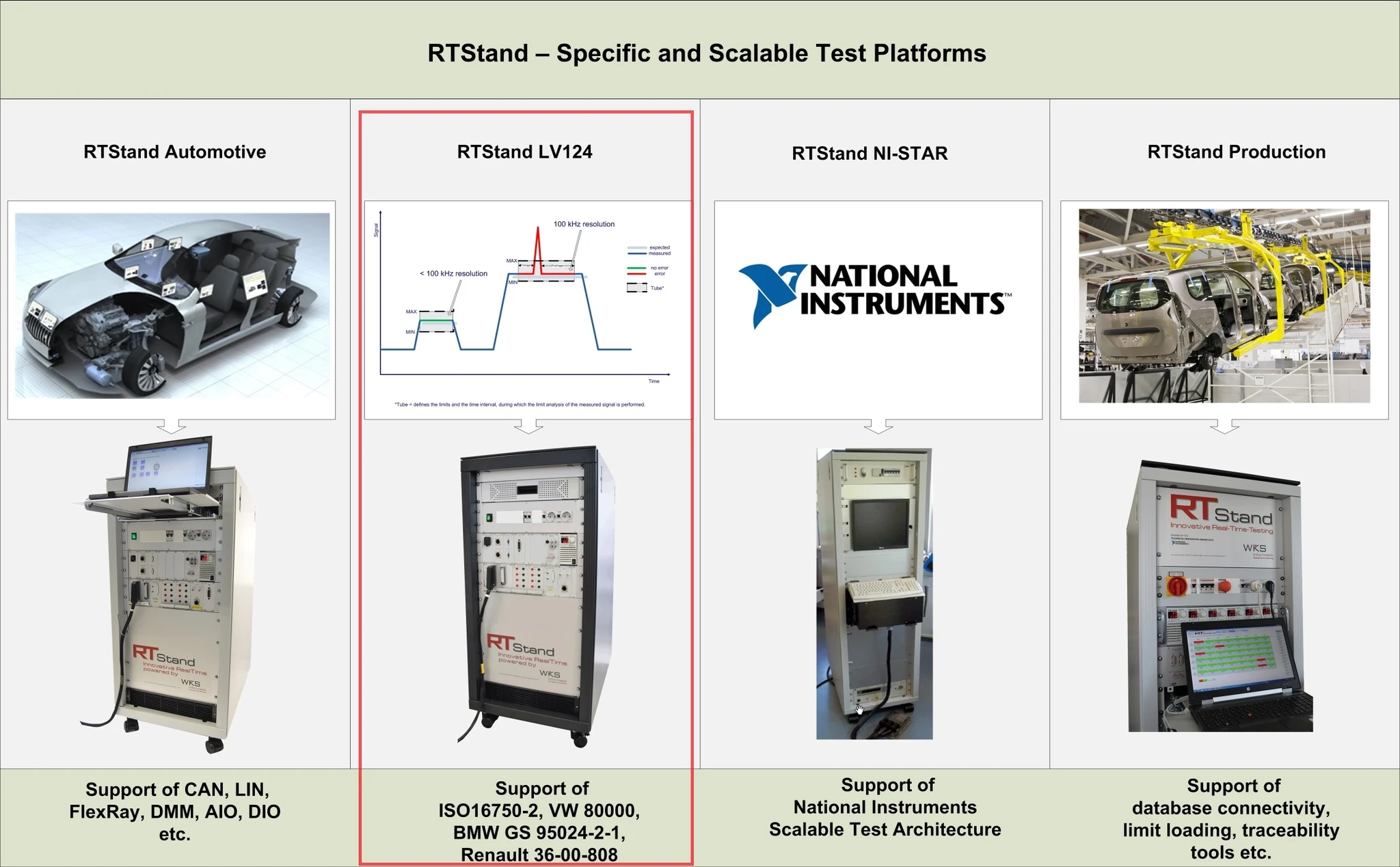

RTStand LV 124 Test Platform

Description:

In recent years, the automotive industry has been faced with technical challenges that had to comply with various industrial norms. One of the most important of these norms is the LV 124, which was drawn up by the representatives of automobile manufacturers like Audi AG, BMW AG, Volkswagen AG, Porsche AG and others. LV 124 describes various electrical tests and their requirements. An innovative modular hardware setup and two ready-to-use WKS Informatik GmbH products – the TubeAnalyzer and RTStand – are integrated in this test setup.

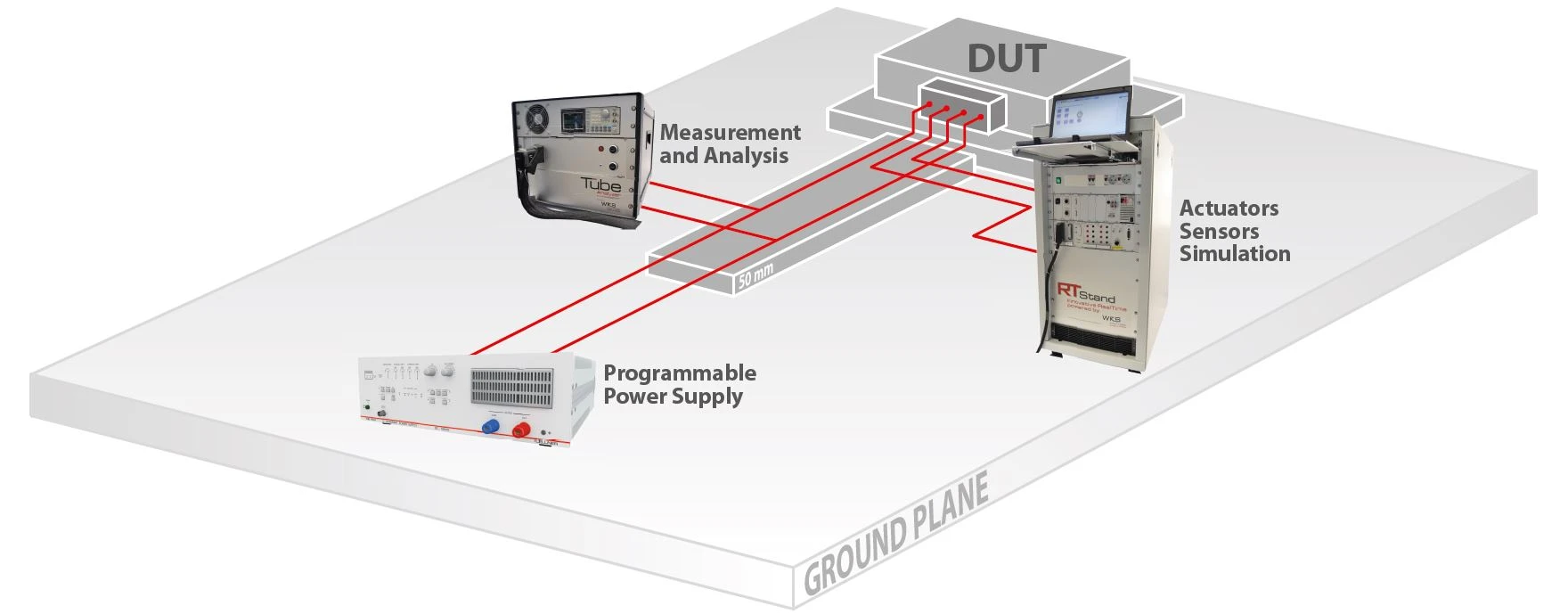

Concept of modular test setup with RTStand LV 124 and Tube Analyzer:

RTStand LV 124 and the Tube Analyzer support a modular test strategy according to the LV 124 norm. The Tube Analyzer is an external test and measurement component, for the LV 124, with flexible pin count (between 8 pins and more than 96 pins). RTSTand LV 124 is specially designed to simulate all actuators and sensors of DUTs and to control the main modules of the test setup. Through the modularity of this concept, the investment protection of companies is assured even when modifying test requirements and DUT definitions, lowering the total cost of ownership.
