RTStand

HiL Testing and Simulation Platform

WINNER OF THE NATIONAL INSTRUMENTS TECHNICAL INNOVATION AWARD

Because of RTStand we were able to detect a sporadic error we would not have found with the old test approach. This saved us a lot of money, as the failure has been detected in a very early stage of development of our gateway. – Thomas Richter, Project Manager – Continental™ AG

BUILT FOR CUSTOMIZATION

RTStand is a customizable HIL test and simulation platform, created to support critical tests during development, validation and production processes of electrical and electronic components.

IoT READY

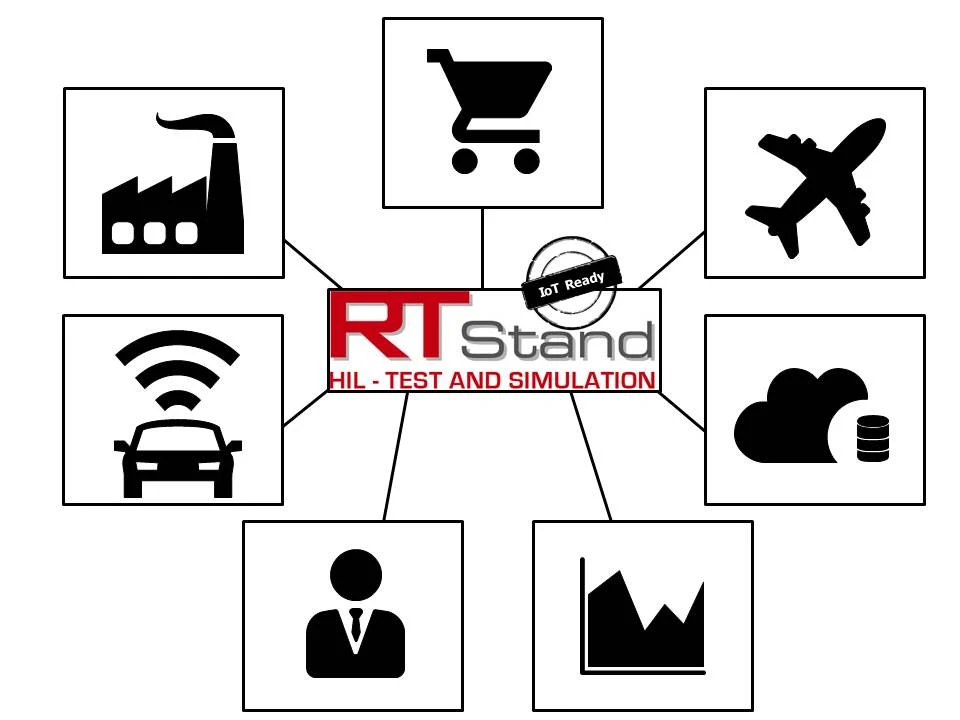

RTStand supports Industry 4.0 applications, by being an open platform that can evolve with changing customer demands and market trends, and is able to leverage new technologies.

RTStand – Platform Components

HARDWARE LAYER

  • Windows platform for supporting Windows applications
  • PXI platform for supporting real-time requirements
  • Support of countless hardware extensions
  • 3rd Party hardware integration capability
  • Modular, scalable hardware layouts

SOFTWARE LAYER

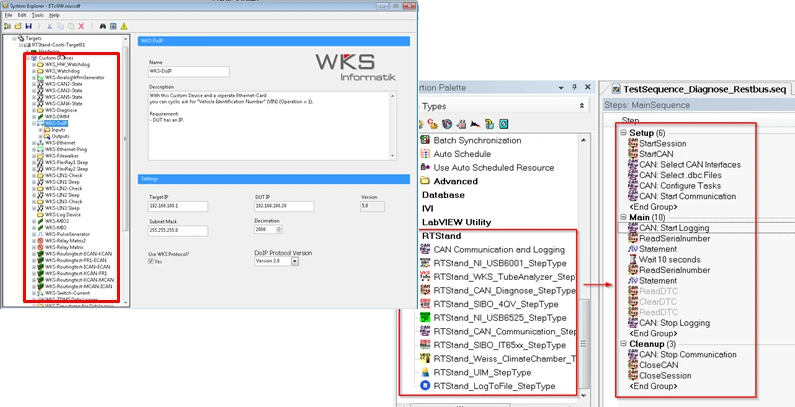

  • Customizable RTStand User Interface for NI TestStand
  • Custom Step Type Library for NI TestStand
  • Custom Device Library for NI VeriStand
  • Integration of various software 3rd party tools
  • Log Viewer, database and Cloud solutions for Big Data

INNOVATION LAYER

  • Tube Analyzer for LV 124 measurement and analysis
  • UFI Switch for LV 124 interruption requirements
  • support of various power supply units

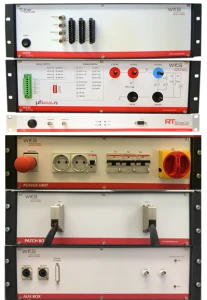

  • DUT connectivity modules for flexible hardware design
  • Modules for connections to external devices

RTStand – Build your own solution

RTStand – Automated Solutions

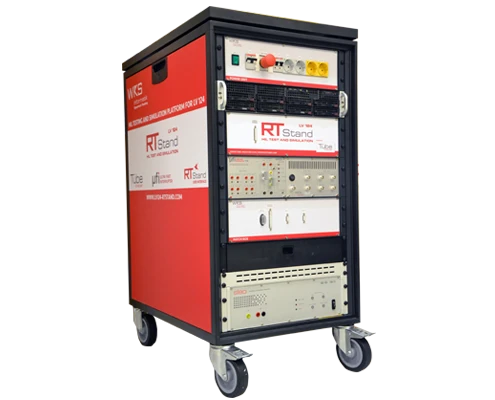

RTStand LV 124

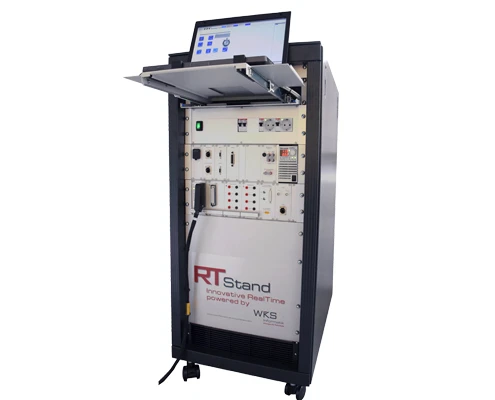

Fully-automated scalable testing platform for LV 124 electrical tests, with many LV 148 capabilities

RTStand Gateway

Automated testing systems platform for lifetime, validation, developement and LV 124 gateway tests

RTStand Radar

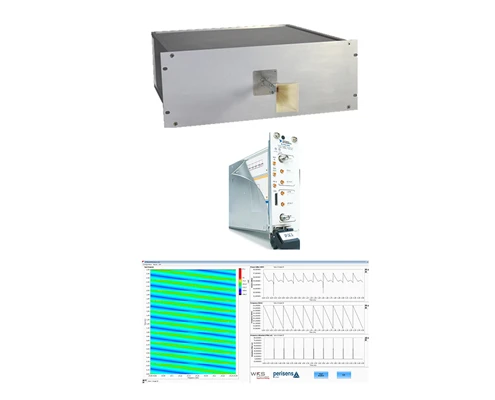

EoL/Production platform for Radar sensors and RF analysis solutions using 24 and 77GHz Radar Target Simulators

RTStand Industrial

Various customer-specific solutions for industrial automaton requirements, based on the RTStand platform

RTStand optimizes your tests through:

  • Reliable detection and innovative analysis of very short sporadic errors
  • Driftless and synchronous monitoring of all inputs and outputs, including fieldbus signals
  • Faster and comfortable test development
  • Flexible and scalable definition of the hardware platform
  • Intuitive and customizable user interface

RTStand reduces your total cost of ownership through:

  • Immediate integration in the National Instruments™ world
  • Worldwide hardware component support by National Instruments™ Partners
  • Modular and scalable software components
  • Continuous software maintenance
  • Based and developed on industry standards NI LabVIEW, NI TestStand, NI VeriStand
